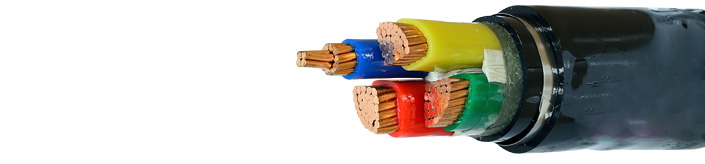

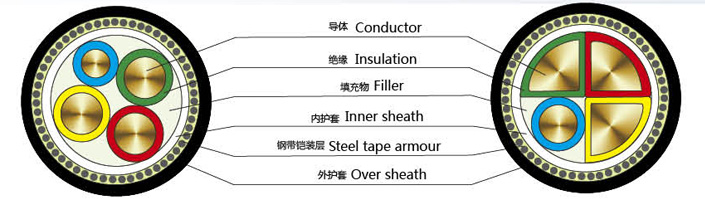

0.6/1KV Silane XLPE Insulated PVC Sheathed Power Cable
 |
|
Products Introduction：
Silane XLPE Insulated PVC Sheathed Power Cable applies to electric line at rated voltage 0.6/1KV, the mechanical performance and electric property of the cable is manufactured according to the standard of GB/T12706.1 – 2008 and IEC60502 – 1997. Flame resistant cable can be GB/T19666 – 2005. |
Operating Characteristics：
1.The highest rated working temperature of PVC insulated control cable conductor id 90℃, XLPE insulated control cable conductor is 250℃.
2.Bending Radius
The minimum bending radius of non armoured cable: Single-core cable 15D; Multiple-core cable 12D
The minimum bending radius of armoured cable:Single-core cable 20D; Multiple-core cable 15D
D is the diameter of the finished cable.
3.The environmental temperature for laying could not be less than 0℃, below 0℃ installation must be preheat.
|
| Type, Designation and Main Application of Cable： |
|
Type |
Designation
|
Main Applications |
| YJV YJLV |
Copper(Aluminium)Conducter XLPE Insulated PVC Sheathed Power Cable
|
For laying indoor and outdoor tunnels, able to bear a centain traction installation, but unable to bear pulling force and pressure, single core cable can not be laid in the magnetic tube. Flame retardant, fire-resistant cable suitable for the places with higher requirements for fire protection.
|
ZR-YJV ZA-YJV ZB-YJV ZC-YJV
ZR-YJLV ZA-YJLV ZB-YJLV ZC-YJLV |
Copper(Aluminium)Conducter Flame Retardant XLPE Insulated PVC Sheathed Power Cable
|
NH-YJV NHZA-YJV NHZB-YJV
NHZB-YJV NHZC-YJV |
Copper(Aluminium)Conducter Fire-resistant XLPE Insulated PVC Sheathed Power Cable
|
| YJV22 YJLV22 |
Copper(Aluminium)Conducter XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable |
For laying direct in ground, able to bear a centain traction installation, pulling force and pressure, flame retardant, fire-resistant cable suitable for the place with higher requirements for fire protection.
|
ZR-YJV22 ZA-YJV22 ZB-YJV22 ZC-YJV22
ZR-YJLV22 ZA-YJLV22 ZB-YJLV22 |
Copper(Aluminium)Conducter Flame Retardant XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable |
ZC-YJLV22 NH-YJV22 NHZA-YJV22
NHZB-YJV22 NHZB-YJV22 NHZC-YJV22 |
Copper(Aluminium)Conducter Fire-resistant XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable |
| Production Range of Cable： |
Type
|
No. of Cores |
Nom. Cross-section of Conductor(mm²) |
| Copper Core |
Aluminum Core |
| |
1 Core |
1.5-630 |
2.5-630 |
| YJV YJLV ZR-YJV ZA-YJV ZB-YJV ZC-YJV |
2 Cores |
1.5-400 |
2.5-400 |
| ZR-YJLV ZA-YJLV ZB-YJLV ZC-YJLV NH-YJV |
3 Cores |
| NHZA-YJV NHZB-YJV NHZC-YJV YJV22 YJLV22 |
4 Cores |
| ZR-YJV22 ZA-YJV22 ZB-YJV22 ZC-YJV22 |
5 Cores |
| ZR-YJLV22 ZA-YJLV22 ZB-YJLV22 ZC-YJLV22 |
3＋1 Cores |
| NH-YJV22 NHZA-YJV22 NHZB-YJV22 NHZC-YJV22 |
3＋2 Cores |
| |
4＋1 Cores |
| Main Properties of the Finished Cable Insualtion and Sheath： |
| Item |
XLPE Insulation |
PVC Sheath |
| Tensile Strength |
不小于 12.5Mpa |
不小于 12.5Mpa |
| Elongation at break |
不小于 200％ |
不小于 150％ |
| Volume Resistivity at 90℃ |
不小于1×1012Ωcm |
/ |
Main Electrical Properties of the Finished Cable：
The D.C. resistance of finished cable conductive core is not greater than the provisions of Article 5 at 20℃.
Finished cable in 3.0KV AC voltage test 5 min without breakdown.
|
Technical Specifications：
1.The conductor of the nominal cross section 6mm2 and below adopts single core solid conductor; the nominal cross section 10mm2 and above adopts stranded conductor. The conductor of single core and twin-core adopt circular or round pressed core; 3, 4, 3+1 core of the nominal cross section 25mm2 and below adopt circular (round pressed) core; the nominal cross section 35mm2 and above adopt twisted round (round pressed) or sector pressed core. 5, 3+2, 4+1 core of the nominal cross section 35mm2 and below sdopt circular (round pressed) core; the nominal cross section 50mm2 and above adopt twisted round (round pressed) or tile pressed core.
2.Copper, aluminum conductive core comply with the relevant provisins of GB/T3956 - 1997.
3.The insulated material is PVC insulation and complies with the relevant provisions of GB/T12706.1 - 2008.
4.The insulation of the multi - core cable wire core should be cabling. The insulated cores comply with the table below with color recognition or digital recognition, or according to user's requirements. |
No. of Cores
|
Color Recognition |
Digital Recognition |
Remarks |
| Master Core |
Midline Core |
Master Core |
Midline Core |
| 1 |
Random Color |
|
/ |
/ |
The color recognition could be customized according to user's requirements. |
| 2 |
Red |
Blue |
1 |
0 |
| 3 |
Red、Yellow、Green |
／ |
1、2、3 |
/ |
| 4、3+1 |
Red、Yellow、Green |
Blue |
1、2、3 |
0 |
| 5、3+2、4+1 |
Red、Yellow、Green |
Blue、Black（Yellow/Green） |
1、2、3 |
4、0 |
| 5.The D.C. resistance of finished cable conductor wire core complies with the provisions of the table below. |
| Nom. Cross-section of Conductor(mm²) |
Max D.C. Resistance of Conduct 20℃.(Ω/km) |
Nom. Cross-section of Conductor(mm²) |
Max D.C. Resistance of Conduct 20℃.(Ω/km |
| Copper Conductor |
Aluminum Conductor |
Copper Conductor |
Aluminum Conductor |
| 1 |
18.1 |
/ |
70 |
0.268 |
0.443 |
| 1.5 |
12.1 |
/ |
95 |
0.193 |
0.320 |
| 2.5 |
7.41 |
18.1 |
120 |
0.153 |
0.253 |
| 4 |
4.61 |
12.1 |
150 |
0.124 |
0.206 |
| 6 |
3.08 |
7.41 |
185 |
0.0991 |
0.164 |
| 10 |
1.83 |
4.61 |
240 |
0.0754 |
0.125 |
| 16 |
1.15 |
1.91 |
300 |
0.0601 |
0.100 |
| 25 |
0.727 |
1.20 |
400 |
0.0470 |
0.0778 |
| 35 |
0.524 |
0.868 |
500 |
0.0366 |
0.0605 |
| 50 |
0.387 |
0.641 |
630 |
0.0283 |
0.0469 |
| 6.Flame retardant cables, fire - resisitant cables, flame resistant cable shall comply with GB/T19666 - 2005. |
|
Main Parameter of 0.6/1KV Single - core Silance XLPE Insulated PVC Sheathed Power Cable：
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 1×1.5 |
0.7 |
1.4 |
/ |
5.6 |
/ |
44 |
/ |
/ |
/ |
31 |
/ |
/ |
/ |
| 1×2.5 |
0.7 |
1.4 |
/ |
6.0 |
/ |
55 |
/ |
/ |
/ |
41 |
32 |
46.0 |
36.0 |
| 1×4 |
0.7 |
1.4 |
/ |
6.5 |
/ |
72 |
49 |
/ |
/ |
54 |
42 |
59.0 |
47.0 |
| 1×6 |
0.7 |
1.4 |
/ |
7.0 |
/ |
94 |
59 |
/ |
/ |
68 |
56 |
74.0 |
60.0 |
| 1×10 |
0.7 |
1.4 |
/ |
8.2 |
/ |
139 |
78 |
/ |
/ |
93 |
72 |
98 |
75 |
| 1×16 |
0.7 |
1.4 |
/ |
9.3 |
/ |
198 |
103 |
/ |
/ |
120 |
93 |
125 |
97 |
| 1×25 |
0.9 |
1.4 |
/ |
11.1 |
/ |
297 |
147 |
/ |
/ |
155 |
130 |
160 |
125 |
| 1×35 |
0.9 |
1.4 |
/ |
12.1 |
/ |
390 |
181 |
/ |
/ |
195 |
190 |
190 |
150 |
| 1×50 |
1.0 |
1.4 |
/ |
14.8 |
/ |
524 |
241 |
/ |
/ |
235 |
180 |
230 |
175 |
| 1×70 |
1.1 |
1.4 |
/ |
16.1 |
/ |
718 |
309 |
/ |
/ |
295 |
230 |
280 |
215 |
| 1×95 |
1.1 |
1.5 |
/ |
17.7 |
/ |
966 |
399 |
/ |
/ |
370 |
285 |
335 |
260 |
| 1×120 |
1.2 |
1.5 |
/ |
20.4 |
/ |
1212 |
496 |
/ |
/ |
430 |
330 |
385 |
295 |
| 1×150 |
1.4 |
1.6 |
/ |
22.1 |
/ |
1486 |
601 |
/ |
/ |
495 |
380 |
430 |
335 |
| 1×185 |
1.6 |
1.6 |
/ |
23.9 |
/ |
1834 |
730 |
/ |
/ |
570 |
445 |
490 |
380 |
| 1×240 |
1.7 |
1.7 |
/ |
27.9 |
/ |
2379 |
942 |
/ |
/ |
680 |
530 |
570 |
445 |
| 1×300 |
1.8 |
1.8 |
/ |
29.7 |
/ |
2960 |
1140 |
/ |
/ |
790 |
615 |
645 |
505 |
| 1×400 |
2.0 |
1.9 |
/ |
33.5 |
/ |
3777 |
1430 |
/ |
/ |
920 |
720 |
735 |
575 |
| 1×500 |
2.2 |
2.0 |
/ |
37.2 |
/ |
4804 |
1814 |
/ |
/ |
1080 |
850 |
840 |
665 |
| 1×630 |
2.4 |
2.2 |
/ |
42.1 |
/ |
6172 |
2314 |
/ |
/ |
1260 |
1000 |
950 |
760 |
|
Main Parameter of 0.6/1KV Twin - core Silance XLPE Insulated PVC Sheathed Power Cable:
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 2×1.5 |
0.7 |
1.8 |
/ |
9.6 |
/ |
101 |
/ |
137 |
/ |
23 |
/ |
/ |
/ |
| 2×2.5 |
0.7 |
1.8 |
/ |
10.4 |
/ |
126 |
/ |
167 |
/ |
33 |
25 |
46 |
36 |
| 2×4 |
0.7 |
1.8 |
1.8 |
11.3 |
15.2 |
162 |
114 |
273 |
225 |
43 |
34 |
59 |
47 |
| 2×6 |
0.7 |
1.8 |
1.8 |
12.3 |
16.2 |
206 |
138 |
327 |
258 |
55 |
45 |
75 |
61 |
| 2×10 |
0.7 |
1.8 |
1.8 |
14.8 |
18.7 |
302 |
181 |
446 |
326 |
76 |
58 |
100 |
78 |
| 2×16 |
0.7 |
1.8 |
1.8 |
17.0 |
20.9 |
427 |
236 |
592 |
402 |
97 |
75 |
130 |
100 |
| 2×25 |
0.9 |
1.8 |
1.8 |
20.5 |
24.4 |
631 |
331 |
830 |
530 |
130 |
100 |
165 |
130 |
| 2×35 |
0.9 |
1.8 |
1.8 |
22.6 |
26.5 |
821 |
403 |
1041 |
623 |
160 |
120 |
200 |
155 |
| 2×50 |
1.0 |
1.8 |
1.8 |
28.0 |
31.9 |
1103 |
537 |
1374 |
808 |
195 |
150 |
240 |
185 |
| 2×70 |
1.1 |
1.8 |
1.9 |
30.5 |
34.6 |
1497 |
679 |
1807 |
989 |
245 |
190 |
290 |
225 |
| 2×95 |
1.1 |
2.0 |
2.0 |
33.8 |
37.7 |
2014 |
880 |
2340 |
1206 |
305 |
235 |
355 |
275 |
| 2×120 |
1.2 |
2.1 |
2.2 |
39.4 |
46.1 |
2538 |
1105 |
3316 |
1882 |
355 |
275 |
405 |
315 |
| 2×150 |
1.4 |
2.2 |
2.3 |
42.5 |
49.2 |
3094 |
1324 |
3931 |
2162 |
405 |
315 |
450 |
350 |
| 2×185 |
1.6 |
2.3 |
2.4 |
46.4 |
53.1 |
3822 |
1614 |
4735 |
2527 |
465 |
365 |
510 |
395 |
| 2×240 |
1.7 |
2.5 |
2.6 |
54.3 |
61.0 |
4964 |
2089 |
6030 |
3155 |
560 |
435 |
575 |
460 |
| 2×300 |
1.8 |
2.7 |
2.8 |
58.0 |
64.7 |
6164 |
2524 |
7301 |
3661 |
650 |
510 |
655 |
520 |
| 2×400 |
2.0 |
2.9 |
3.0 |
65.5 |
72.2 |
7860 |
3166 |
9142 |
4448 |
730 |
600 |
750 |
600 |
Main Parameter of 0.6/1KV Three - core Silance XLPE Insulated PVC Sheathed Power Cable:
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 3×1.5 |
0.7 |
1.8 |
|
10.1 |
/ |
124 |
/ |
/ |
/ |
20 |
/ |
/ |
/ |
| 3×2.5 |
0.7 |
1.8 |
|
11.0 |
/ |
159 |
/ |
/ |
/ |
28 |
22 |
39 |
31 |
| 3×4 |
0.7 |
1.8 |
1.8 |
12.1 |
15.9 |
211 |
139 |
325 |
254 |
37 |
29 |
51 |
40 |
| 3×6 |
0.7 |
1.8 |
1.8 |
13.2 |
17.0 |
274 |
171 |
399 |
296 |
47 |
39 |
64 |
52 |
| 3×10 |
0.7 |
1.8 |
1.8 |
15.8 |
19.6 |
410 |
229 |
559 |
378 |
65 |
50 |
86 |
66 |
| 3×16 |
0.7 |
1.8 |
1.8 |
17.9 |
22.0 |
587 |
301 |
761 |
475 |
84 |
65 |
110 |
85 |
| 3×25 |
0.9 |
1.8 |
1.8 |
21.6 |
25.8 |
882 |
432 |
1091 |
641 |
110 |
87 |
140 |
110 |
| 3×35 |
0.9 |
1.8 |
1.8 |
19.8 |
23.7 |
1126 |
499 |
1311 |
684 |
135 |
105 |
170 |
130 |
| 3×50 |
1.0 |
1.8 |
1.9 |
23.0 |
27.1 |
1510 |
661 |
1735 |
886 |
170 |
130 |
205 |
160 |
| 3×70 |
1.1 |
1.9 |
2.0 |
26.5 |
30.6 |
2111 |
884 |
2368 |
1141 |
215 |
165 |
250 |
195 |
| 3×95 |
1.1 |
2.0 |
2.2 |
29.6 |
36.5 |
2845 |
1143 |
3434 |
1732 |
265 |
206 |
300 |
235 |
| 3×120 |
1.2 |
2.1 |
2.3 |
34.1 |
41.0 |
3587 |
1438 |
4261 |
2111 |
310 |
240 |
345 |
265 |
| 3×150 |
1.4 |
2.3 |
2.5 |
37.7 |
44.6 |
4420 |
1765 |
5159 |
2504 |
350 |
270 |
385 |
300 |
| 3×185 |
1.6 |
2.4 |
2.6 |
41.7 |
48.6 |
5489 |
2178 |
6302 |
2990 |
405 |
315 |
435 |
340 |
| 3×240 |
1.7 |
2.6 |
2.8 |
46.7 |
53.6 |
7109 |
2796 |
8012 |
3699 |
480 |
375 |
500 |
395 |
| 3×300 |
1.8 |
2.8 |
3.0 |
51.1 |
58.0 |
8872 |
3412 |
9857 |
4396 |
555 |
435 |
565 |
445 |
| 3×400 |
2.0 |
3.1 |
3.3 |
56.8 |
63.7 |
11347 |
4306 |
12432 |
5391 |
640 |
510 |
640 |
510 |
Main Parameter of 0.6/1KV Four - core Silance XLPE Insulated PVC Sheathed Power Cable:
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 4×1.5 |
0.7 |
1.8 |
1.8 |
10.9 |
/ |
147 |
/ |
242 |
/ |
20 |
/ |
/ |
/ |
| 4×2.5 |
0.7 |
1.8 |
1.8 |
11.8 |
/ |
191 |
/ |
296 |
/ |
28 |
22 |
39 |
31 |
| 4×4 |
0.7 |
1.8 |
1.8 |
13.1 |
14.8 |
258 |
163 |
374 |
278 |
37 |
29 |
51 |
40 |
| 4×6 |
0.7 |
1.8 |
1.8 |
14.3 |
16.1 |
340 |
202 |
469 |
332 |
47 |
39 |
64 |
52 |
| 4×10 |
0.7 |
1.8 |
1.8 |
17.2 |
19.0 |
514 |
273 |
675 |
434 |
65 |
50 |
86 |
66 |
| 4×16 |
0.7 |
1.8 |
1.8 |
19.6 |
21.7 |
746 |
365 |
937 |
556 |
84 |
65 |
110 |
85 |
| 4×25 |
0.9 |
1.8 |
1.8 |
23.7 |
26.0 |
1130 |
529 |
1367 |
766 |
110 |
87 |
140 |
110 |
| 4×35 |
0.9 |
1.8 |
1.8 |
22.6 |
25.2 |
1466 |
631 |
1697 |
861 |
135 |
105 |
170 |
130 |
| 4×50 |
1.0 |
1.9 |
1.9 |
26.1 |
28.5 |
1976 |
844 |
2240 |
1108 |
170 |
130 |
205 |
160 |
| 4×70 |
1.1 |
2.0 |
2.1 |
30.3 |
34.9 |
2769 |
1134 |
3382 |
1747 |
215 |
165 |
250 |
195 |
| 4×95 |
1.1 |
2.1 |
2.3 |
34.4 |
39.2 |
3746 |
1477 |
4459 |
2190 |
265 |
206 |
300 |
235 |
| 4×120 |
1.2 |
2.3 |
2.4 |
38.4 |
43.0 |
4726 |
1859 |
5499 |
2633 |
310 |
240 |
345 |
265 |
| 4×150 |
1.4 |
2.4 |
2.6 |
42.5 |
47.3 |
5803 |
2263 |
6680 |
3140 |
350 |
270 |
385 |
300 |
| 4×185 |
1.6 |
2.6 |
2.7 |
47.1 |
51.7 |
7230 |
2815 |
8176 |
3760 |
405 |
315 |
435 |
340 |
| 4×240 |
1.7 |
2.8 |
2.9 |
52.3 |
56.9 |
9360 |
3610 |
10408 |
4658 |
480 |
375 |
500 |
395 |
| 4×300 |
1.8 |
3.0 |
3.1 |
56.9 |
61.5 |
11684 |
4404 |
12822 |
5542 |
555 |
435 |
565 |
445 |
| 4×400 |
2.0 |
3.3 |
3.4 |
63.0 |
68.8 |
14940 |
5552 |
16787 |
7399 |
640 |
510 |
640 |
510 |
Main Parameter of 0.6/1KV Five - core Silance XLPE Insulated PVC Sheathed Power Cable：
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 5×1.5 |
0.7 |
1.8 |
1.8 |
11.7 |
/ |
171 |
/ |
303 |
/ |
20 |
/ |
/ |
/ |
| 5×2.5 |
0.7 |
1.8 |
1.8 |
12.7 |
/ |
225 |
/ |
370 |
/ |
28 |
22 |
39 |
31 |
| 5×4 |
0.7 |
1.8 |
1.8 |
14.1 |
16.5 |
307 |
188 |
488 |
369 |
37 |
29 |
51 |
40 |
| 5×6 |
0.7 |
1.8 |
1.8 |
15.4 |
17.8 |
407 |
236 |
609 |
437 |
47 |
39 |
64 |
52 |
| 5×10 |
0.7 |
1.8 |
1.8 |
18.7 |
21.1 |
622 |
321 |
873 |
572 |
65 |
50 |
86 |
66 |
| 5×16 |
0.7 |
1.8 |
1.8 |
21.4 |
23.8 |
909 |
433 |
1202 |
726 |
84 |
65 |
110 |
85 |
| 5×25 |
0.9 |
1.8 |
1.8 |
26 |
28.4 |
1385 |
635 |
1757 |
1007 |
110 |
87 |
140 |
110 |
| 5×35 |
0.9 |
1.8 |
2.0 |
29.1 |
31.9 |
1842 |
797 |
2290 |
1245 |
135 |
105 |
170 |
130 |
| 5×50 |
1.0 |
2.0 |
2.2 |
29.7 |
34.5 |
2459 |
1044 |
3272 |
1857 |
170 |
130 |
205 |
160 |
| 5×70 |
1.1 |
2.1 |
2.3 |
35.2 |
40 |
3455 |
1411 |
4378 |
2334 |
215 |
165 |
250 |
195 |
| 5×95 |
1.1 |
2.3 |
2.5 |
37.7 |
42.5 |
4665 |
1829 |
5729 |
2893 |
265 |
206 |
300 |
235 |
| 5×120 |
1.2 |
2.4 |
2.6 |
42.3 |
47.1 |
5869 |
2286 |
7050 |
3467 |
310 |
240 |
345 |
265 |
| 5×150 |
1.4 |
2.6 |
2.8 |
46.9 |
51.7 |
7228 |
2804 |
8553 |
4128 |
350 |
270 |
385 |
300 |
| 5×185 |
1.6 |
2.8 |
3.0 |
52.6 |
57.4 |
9012 |
3493 |
10516 |
4996 |
405 |
315 |
435 |
340 |
| 5×240 |
1.7 |
3.0 |
3.2 |
57.1 |
61.9 |
11647 |
4460 |
13394 |
6206 |
480 |
375 |
500 |
395 |
| 5×300 |
1.8 |
3.2 |
3.5 |
62.6 |
67.6 |
14547 |
5447 |
16555 |
7454 |
555 |
435 |
565 |
445 |
| 5×400 |
2.0 |
3.6 |
3.8 |
68.8 |
74.8 |
18619 |
6884 |
21495 |
9760 |
640 |
510 |
640 |
510 |
Main Parameter of 0.6/1KV 3+1 - core Silance XLPE Insulated PVC Sheathed Power Cable：
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 3×1.5＋1×1 |
0.7 |
1.8 |
1.8 |
10.1 |
13.1 |
135 |
/ |
/ |
/ |
15 |
/ |
/ |
/ |
| 3×2.5＋1×1.5 |
0.7 |
1.8 |
1.8 |
10.5 |
13.5 |
171 |
/ |
/ |
/ |
21 |
17 |
/ |
/ |
| 3×4＋1×2.5 |
0.7 |
1.8 |
1.8 |
12.6 |
15.9 |
241 |
154 |
411 |
325 |
28 |
22 |
/ |
/ |
| 3×6＋1×4 |
0.7 |
1.8 |
1.8 |
14.1 |
17.4 |
321 |
194 |
516 |
390 |
36 |
29 |
/ |
/ |
| 3×10＋1×6 |
0.7 |
1.8 |
1.8 |
16.2 |
19.4 |
471 |
255 |
698 |
483 |
49 |
38 |
72 |
55 |
| 3×16＋1×10 |
0.7 |
1.8 |
1.8 |
18.5 |
21.8 |
686 |
340 |
950 |
604 |
66 |
51 |
94 |
73 |
| 3×25＋1×16 |
0.9 |
1.8 |
1.8 |
21.2 |
25.4 |
1024 |
478 |
1355 |
810 |
84 |
65 |
120 |
94 |
| 3×35＋1×16 |
0.9 |
1.8 |
1.8 |
22.0 |
25.3 |
1289 |
567 |
1620 |
898 |
100 |
80 |
145 |
110 |
| 3×50＋1×25 |
1.0 |
1.8 |
1.9 |
25.5 |
29.4 |
1760 |
760 |
2198 |
1199 |
125 |
98 |
175 |
135 |
| 3×70＋1×35 |
1.1 |
1.9 |
2.1 |
29.2 |
32.9 |
2451 |
1015 |
2953 |
1518 |
160 |
120 |
210 |
165 |
| 3×95＋1×50 |
1.1 |
2.1 |
2.3 |
33.2 |
37.8 |
3320 |
1336 |
3942 |
1957 |
195 |
150 |
255 |
200 |
| 3×120＋1×70 |
1.2 |
2.2 |
2.4 |
37.0 |
42.3 |
4242 |
1684 |
5282 |
2724 |
235 |
180 |
295 |
230 |
| 3×150＋1×70 |
1.4 |
2.3 |
2.5 |
41.1 |
46.4 |
5063 |
2000 |
6218 |
3154 |
260 |
200 |
330 |
255 |
| 3×185＋1×95 |
1.6 |
2.5 |
2.7 |
45.6 |
50.9 |
6387 |
2508 |
7680 |
3801 |
305 |
235 |
370 |
290 |
| 3×240＋1×120 |
1.7 |
2.7 |
2.9 |
50.8 |
56.6 |
8229 |
3200 |
9753 |
4724 |
360 |
280 |
425 |
335 |
| 3×300＋1×150 |
1.8 |
2.9 |
3.1 |
55.3 |
61.5 |
10251 |
3906 |
11964 |
5619 |
410 |
320 |
480 |
375 |
| 3×400＋1×185 |
2.0 |
3.1 |
3.3 |
61.1 |
68.5 |
13045 |
4900 |
15580 |
7436 |
485 |
380 |
555 |
435 |
Main Parameter of 0.6/1KV 3+2 - core Silance XLPE Insulated PVC Sheathed Power Cable：
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 3×1.5＋2×1 |
0.7 |
1.8 |
1.8 |
11.1 |
/ |
156 |
/ |
|
|
15 |
/ |
/ |
/ |
| 3×2.5＋2×1.5 |
0.7 |
1.8 |
1.8 |
12.9 |
/ |
210 |
/ |
|
|
21 |
17 |
/ |
/ |
| 3×4＋2×2.5 |
0.7 |
1.8 |
1.8 |
13.4 |
15.8 |
275 |
174 |
432 |
331 |
28 |
22 |
/ |
/ |
| 3×6＋2×4 |
0.7 |
1.8 |
1.8 |
15.2 |
17.6 |
372 |
221 |
560 |
410 |
36 |
29 |
/ |
/ |
| 3×10＋2×6 |
0.7 |
1.8 |
1.8 |
17.4 |
19.8 |
542 |
292 |
766 |
517 |
49 |
38 |
72 |
55 |
| 3×16＋2×10 |
0.7 |
1.8 |
1.8 |
20.1 |
22.5 |
797 |
391 |
1061 |
655 |
66 |
51 |
94 |
73 |
| 3×25＋2×16 |
0.9 |
1.8 |
1.8 |
22.8 |
25.2 |
1189 |
548 |
1503 |
863 |
84 |
65 |
120 |
94 |
| 3×35＋2×16 |
0.9 |
1.8 |
1.9 |
25.8 |
28.4 |
1473 |
655 |
1838 |
1020 |
100 |
80 |
145 |
110 |
| 3×50＋2×25 |
1.0 |
1.9 |
2 |
29.5 |
32.1 |
2044 |
895 |
2501 |
1352 |
125 |
98 |
175 |
135 |
| 3×70＋2×35 |
1.1 |
2 |
2.2 |
35.0 |
39.8 |
2845 |
1201 |
3746 |
2101 |
160 |
120 |
210 |
165 |
| 3×95＋2×50 |
1.1 |
2.2 |
2.3 |
37.5 |
42.1 |
3821 |
1553 |
4804 |
2536 |
195 |
150 |
255 |
200 |
| 3×120＋2×70 |
1.2 |
2.3 |
2.5 |
42.1 |
46.9 |
4942 |
1975 |
6078 |
3110 |
235 |
180 |
295 |
230 |
| 3×150＋2×70 |
1.4 |
2.4 |
2.6 |
46.5 |
51.3 |
5771 |
2298 |
7023 |
3551 |
260 |
200 |
330 |
255 |
| 3×185＋2×95 |
1.6 |
2.6 |
2.8 |
52.2 |
57.0 |
7350 |
2904 |
8771 |
4325 |
305 |
235 |
370 |
290 |
| 3×240＋2×120 |
1.7 |
2.8 |
3 |
56.7 |
61.5 |
9415 |
3669 |
11046 |
5301 |
360 |
280 |
425 |
335 |
| 3×300＋2×150 |
1.8 |
3 |
3.2 |
62.2 |
67.0 |
11714 |
4483 |
13550 |
6320 |
410 |
320 |
480 |
375 |
| 3×400＋2×185 |
2.0 |
3.2 |
3.5 |
68.0 |
74.2 |
14862 |
5613 |
17617 |
8368 |
485 |
380 |
555 |
435 |
Main Parameter of 0.6/1KV 4+1 - core Silance XLPE Insulated PVC Sheathed Power Cable：
specifi-
cation
|
Insulation ThickNess
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable (mm) |
Approx. Weight of Cable (kg/km) |
Current Rating (A) |
| Non Armoured |
Armoured |
Air Laying |
Underground Laying |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
Copper Core |
Aluminum Core |
| 4×1.5＋1×1 |
0.7 |
1.8 |
1.8 |
11.1 |
/ |
161 |
/ |
|
|
15 |
/ |
/ |
/ |
| 4×2.5＋1×1.5 |
0.7 |
1.8 |
1.8 |
12.9 |
/ |
218 |
/ |
|
|
21 |
17 |
/ |
/ |
| 4×4＋1×2.5 |
0.7 |
1.8 |
1.8 |
13.4 |
15.8 |
288 |
178 |
427 |
317 |
28 |
22 |
/ |
/ |
| 4×6＋1×4 |
0.7 |
1.8 |
1.8 |
15.2 |
17.6 |
389 |
228 |
552 |
391 |
36 |
29 |
/ |
/ |
| 4×10＋1×6 |
0.7 |
1.8 |
1.8 |
17.4 |
19.8 |
577 |
301 |
772 |
497 |
49 |
38 |
72 |
55 |
| 4×16＋1×10 |
0.7 |
1.8 |
1.8 |
20.1 |
22.5 |
848 |
406 |
1077 |
636 |
66 |
51 |
94 |
73 |
| 4×25＋1×16 |
0.9 |
1.8 |
1.8 |
22.8 |
25.2 |
1273 |
578 |
1552 |
856 |
84 |
65 |
120 |
94 |
| 4×35＋1×16 |
0.9 |
1.8 |
1.9 |
25.8 |
28.4 |
1643 |
712 |
1964 |
1033 |
100 |
80 |
145 |
110 |
| 4×50＋1×25 |
1.0 |
1.9 |
2.1 |
29.5 |
34.3 |
2245 |
963 |
2959 |
1677 |
125 |
98 |
175 |
135 |
| 4×70＋1×35 |
1.1 |
2.1 |
2.2 |
35.2 |
39.8 |
3158 |
1314 |
3973 |
2128 |
160 |
120 |
210 |
165 |
| 4×95＋1×50 |
1.1 |
2.2 |
2.4 |
37.5 |
42.3 |
4234 |
1683 |
5181 |
2629 |
195 |
150 |
255 |
200 |
| 4×120＋1×70 |
1.2 |
2.4 |
2.6 |
42.3 |
47.1 |
5415 |
2140 |
6478 |
3203 |
235 |
180 |
295 |
230 |
| 4×150＋1×70 |
1.4 |
2.5 |
2.7 |
46.7 |
51.5 |
6500 |
2551 |
7674 |
3726 |
260 |
200 |
330 |
255 |
| 4×185＋1×95 |
1.6 |
2.7 |
2.9 |
52.4 |
57.2 |
8181 |
3199 |
9517 |
4534 |
305 |
235 |
370 |
290 |
| 4×240＋1×120 |
1.7 |
2.9 |
3.1 |
56.9 |
61.7 |
10531 |
4064 |
12082 |
5615 |
360 |
280 |
425 |
335 |
| 4×300＋1×150 |
1.8 |
3.1 |
3.3 |
62.4 |
67.2 |
13130 |
4965 |
14885 |
6720 |
410 |
320 |
480 |
375 |
| 4×400＋1×185 |
2.0 |
3.4 |
3.7 |
68.4 |
74.6 |
16740 |
6248 |
19413 |
8921 |
485 |
380 |
555 |
435 |
|
|
