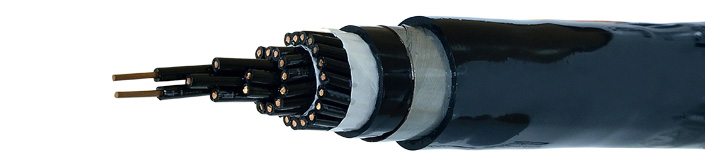

450/750V Plastic Insulated Control Cable
 |
|
Products Introduction:
450/750V Plastic Insulated Control Cable applies to control, monitoring and protection circuit at rated voltage 450/750V, the mechanical performance and electric property of the cable is manufactured according to the standard of GB 9330 - 2008 and IEC 60502-1997, the flame resistant cable can be GB/T 19666 - 2005. |
Operating Characteristics:
1.The highest rated working temperature of PVC insulated control cable conductor is 70℃, XLPE insulated control cable
conductor is 90℃.
2.The minimum bending radius of non armoured cable should not be less than 6 times of cable diameter; the minimum
bending radius of armoured cable should not be less than 6 times of cable diameter.
3.The environmental temperature for laying could not be less than 0℃, below 0℃ installation must be preheat.
|
| Type, Designation and Main Application of Cable: |
|
Type |
Designation
|
Main Applications |
| KVV KYJV |
PVC(XLPE)Insulated and sheathed Control Cable
|
For laying indoor and outdoor tunnels, able to bear a centain traction installation, but unable to bear pulling force and pressure, flame retardant,fire-resistant cable suitable for the places with higher requirements for fire protection.
|
ZR-KVV ZA-KVV ZB-KVV ZC-KVV
ZR-KYJV ZA-KYJV ZB-KYJV ZC-KYJV |
Flame Retardant PVC(XLPE)Insulated and sheathed Control Cable
|
NH-KVV NHZA-KVV NHZB-KVV NHZC-KVV
NH-KYJV NHZA-KYJV NHZB-KYJV NHZC-KYJV |
Fire-resistant PVC(XLPE)Insulated and sheathed Control Cable
|
| KVV22 KYJV22 |
PVC(XLPE)Insulated Steel Wire
Armoured PVC Sheathed Control Cable |
For laying direct in ground, able to bear a centain traction installation, pulling force and pressure, flame retardant, fire-resistant cable suitable for the place with higher requirements for fire protection.
|
ZR-KVV22 ZA-KVV22 ZB-KVV22 ZC-KVV22
ZR-KYJV22 ZA-KYJV22 ZB-KYJV22 |
Flame Retardant PVC(XLPE)Insulated Steel Wire
Armoured PVC Sheathed Control Cable |
ZC-KYJV22 NH-KVV22 NHZA-KVV22
NHZB-KVV22 NHZC-KVV22NH-KYJV22
NHZA-KYJV22NHZB-KYJV22 NHZC-KYJV22 |
Fire Retardant PVC(XLPE)Insulated Steel Wire
Armoured PVC Sheathed Control Cable |
| Production Range of Cable： |
Type |
No. of Cores
|
Nom. Cross-section
of Conductor(mm²) |
| KVV KYJV ZR-KVV ZA-KVV ZB-KVV ZC-KVV ZR-KYJV ZA-KYJV |
2－37 Cores |
0.75-10 |
| ZB-KYJV ZC-KYJV NH-KVV NHZA-KVV NHZB-KVV NHZC-KVV |
| NH-KYJV NHZA-KYJV NHZB-KYJV NHZC-KYJV KVV22 KYJV22 |
| ZR-KVV22 ZA-KVV22 ZB-KVV22 ZC-KVV22 ZR-KYJV22 ZA-KYJV22 |
| ZB-KYJV22 ZC-KYJV22 NH-KVV22 NHZA-KVV22 NHZB-KVV22 |
| NHZA-KYJV22NHZB-KYJV22 NHZC-KYJV22 |
| Main Properties of the Finished Cable Insulation and Sheath： |
| Item |
PVC Insulation |
PVC Sheath |
XLPE Insulation |
| Tensile Strength |
不小于 12.5 Mpa |
不小于 12.5 Mpa |
不小于 12.5 Mpa |
| Elongation at break |
不小于 150 ％ |
不小于 150 ％ |
不小于 200 ％ |
| Volume Resistivity at 70℃ |
不小于1×1010Ωcm |
/ |
/ |
| Volume Resistivity at 90℃ |
/ |
不小于 1×1012Ωcm |
/ |
Main Electrical Properties of the Finished Cable：
The D.C. resistance of finished cable conductive core is not greater than the provisions of Article 6 at 20℃.
Finished cable at 3.0KV AC voltage test 5 min without breakdown.
|
Technical Specifications：

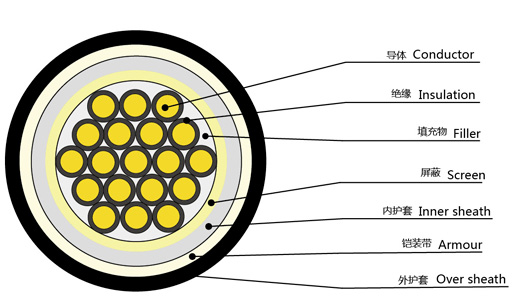

1.The conductor adopts single core solid conductor or stranded conductor.
2.Conductive core complies with the relevant provisions of GB/T3956 - 1997.
3.The insulated material is PVC or XLPE, and complies with the relevant provisions of GB9330 - 1988 or IEC 60502 - 1997.
4.The insulation of the cable wire core should be cabling, the twisted direction of the outermost layer to the right, adjacent layer to the
opposite, the outer standed pitch is not more than 20 times of the standed outer.
5.The insulated cores using color recognition or digital recognition. The recognition can be also according to user's requirements.
6.The D.C. resistance of finished cable conductor wire core complies with the provisions of the table below. |
| Nom. Cross-section of Conductor(mm²) |
Max D.C. Resistance of Conduct 20℃.(Ω/km) |
| 0.75 |
24.5 |
| 1 |
18.1 |
| 1.5 |
12.1 |
| 2.5 |
7.41 |
| 4 |
4.61 |
| 6 |
3.08 |
| 10 |
1.83 |
| 7.Flame retardant cables, fire-resisitant cables, flame resistant cable shall comply with GB/T19666 - 2005. |
|
Main Parameter：
specifi-
cation
|
PVC Insulated
|
XLPE Insulated
|
Insu-
lation Thick-Ness
(mm) |
Sheath Thickness(mm) |
Approx. Overall Diameter of Cable(mm) |
Approx. Weight of Cable (kg/km) |
Insu-
lation Thick-Ness
(mm) |
Sheath Thickness
(mm) |
Approx. Overall Diameter of Cable(mm) |
Approx. Weight of Cable (kg/km) |
| Non Armoured |
Armoured |
Non Armoured |
Armoured |
Non Armoured |
Armoured |
Non Armoured |
Armoured |
Non Armoured |
Armoured |
Non Armoured |
Armoured |
| 2×0.75 |
0.6 |
1.2 |
/ |
7.2 |
/ |
56 |
/ |
0.6 |
1.2 |
/ |
7.2 |
/ |
53 |
/ |
| 2×1 |
0.6 |
1.2 |
/ |
7.6 |
/ |
64 |
/ |
0.6 |
1.2 |
/ |
7.6 |
/ |
60 |
/ |
| 2×1.5 |
0.7 |
1.2 |
/ |
8.5 |
/ |
81 |
/ |
0.7 |
1.2 |
/ |
8.5 |
/ |
77 |
/ |
| 2×2.5 |
0.8 |
1.2 |
/ |
9.7 |
/ |
110 |
/ |
0.7 |
1.2 |
/ |
9.3 |
/ |
100 |
/ |
| 2×4 |
0.8 |
1.2 |
/ |
10.6 |
/ |
145 |
/ |
0.7 |
1.2 |
/ |
10.2 |
/ |
133 |
/ |
| 2×6 |
0.8 |
1.2 |
/ |
11.6 |
/ |
189 |
/ |
0.7 |
1.2 |
/ |
11.2 |
/ |
175 |
/ |
| 2×10 |
1.0 |
1.5 |
/ |
15.5 |
/ |
318 |
/ |
0.7 |
1.5 |
/ |
14.3 |
/ |
283 |
/ |
| 3×0.75 |
0.6 |
1.2 |
/ |
7.6 |
/ |
69 |
/ |
0.6 |
1.2 |
/ |
7.6 |
/ |
65 |
/ |
| 3×1 |
0.6 |
1.2 |
/ |
7.9 |
/ |
79 |
/ |
0.6 |
1.2 |
/ |
7.9 |
/ |
74 |
/ |
| 3×1.5 |
0.7 |
1.2 |
/ |
8.9 |
/ |
104 |
/ |
0.7 |
1.2 |
/ |
8.9 |
/ |
97 |
/ |
| 3×2.5 |
0.8 |
1.2 |
/ |
10.2 |
/ |
144 |
/ |
0.7 |
1.2 |
/ |
9.8 |
/ |
129 |
/ |
| 3×4 |
0.8 |
1.2 |
/ |
11.2 |
/ |
194 |
/ |
0.7 |
1.2 |
/ |
10.8 |
/ |
177 |
/ |
| 3×6 |
0.8 |
1.5 |
/ |
12.9 |
/ |
274 |
/ |
0.7 |
1.5 |
/ |
12.5 |
/ |
254 |
/ |
| 3×10 |
1.0 |
1.5 |
/ |
16.4 |
/ |
434 |
/ |
0.7 |
1.5 |
/ |
15.1 |
/ |
385 |
/ |
| 4×0.75 |
0.6 |
1.2 |
/ |
8.2 |
/ |
83 |
/ |
0.6 |
1.2 |
/ |
8.2 |
/ |
77 |
/ |
| 4×1 |
0.6 |
1.2 |
/ |
8.5 |
/ |
96 |
/ |
0.6 |
1.2 |
/ |
8.5 |
/ |
90 |
/ |
| 4×0.75 |
0.6 |
1.2 |
/ |
8.2 |
/ |
83 |
/ |
0.6 |
1.2 |
/ |
8.2 |
/ |
77 |
/ |
| 4×1 |
0.6 |
1.2 |
/ |
8.5 |
/ |
96 |
/ |
0.6 |
1.2 |
/ |
8.5 |
/ |
90 |
/ |
| 4×1.5 |
0.7 |
1.2 |
/ |
9.6 |
/ |
128 |
/ |
0.7 |
1.2 |
/ |
9.6 |
/ |
119 |
/ |
| 4×2.5 |
0.8 |
1.2 |
1.5 |
11.1 |
14.0 |
180 |
321 |
0.7 |
1.2 |
1.5 |
10.6 |
13.5 |
160 |
295 |
| 4×4 |
0.8 |
1.5 |
1.5 |
12.8 |
15.1 |
263 |
353 |
0.7 |
1.5 |
1.5 |
12.3 |
14.6 |
239 |
327 |
| 4×6 |
0.8 |
1.5 |
1.5 |
14.1 |
16.4 |
346 |
445 |
0.7 |
1.5 |
1.5 |
13.6 |
15.9 |
320 |
415 |
| 4×10 |
1.0 |
1.5 |
1.7 |
18.0 |
20.7 |
554 |
695 |
0.7 |
1.5 |
1.7 |
16.5 |
19.2 |
491 |
622 |
| 5×0.75 |
0.6 |
1.2 |
1.2 |
8.8 |
11.1 |
121 |
187 |
0.6 |
1.2 |
1.2 |
8.8 |
11.6 |
114 |
190 |
| 5×1 |
0.6 |
1.2 |
1.2 |
9.2 |
11.5 |
113 |
181 |
0.6 |
1.2 |
1.2 |
9.2 |
12.0 |
105 |
193 |
| 5×1.5 |
0.7 |
1.2 |
1.2 |
10.4 |
12.7 |
152 |
228 |
0.7 |
1.2 |
1.2 |
10.4 |
12.7 |
141 |
228 |
| 5×2.5 |
0.8 |
1.5 |
1.5 |
12.6 |
14.9 |
233 |
322 |
0.7 |
1.5 |
1.5 |
12.1 |
14.4 |
208 |
294 |
| 5×4 |
0.8 |
1.5 |
1.5 |
13.9 |
16.2 |
316 |
413 |
0.7 |
1.5 |
1.5 |
13.4 |
15.7 |
287 |
381 |
| 5×6 |
0.8 |
1.5 |
1.7 |
15.3 |
18.0 |
419 |
541 |
0.7 |
1.5 |
1.7 |
14.7 |
17.4 |
387 |
505 |
| 5×10 |
1.0 |
1.5 |
1.7 |
19.7 |
22.4 |
674 |
829 |
0.7 |
1.5 |
1.7 |
18.1 |
20.8 |
598 |
740 |
| 7×0.75 |
0.6 |
1.2 |
1.5 |
9.4 |
12.3 |
162 |
247 |
0.6 |
1.2 |
1.5 |
9.4 |
12.3 |
151 |
237 |
| 7×1 |
0.6 |
1.2 |
1.5 |
9.9 |
12.8 |
144 |
234 |
0.6 |
1.2 |
1.5 |
9.9 |
12.8 |
133 |
222 |
| 7×1.5 |
0.7 |
1.2 |
1.5 |
11.2 |
14.1 |
196 |
296 |
0.7 |
1.2 |
1.5 |
11.2 |
14.1 |
180 |
280 |
| 7×2.5 |
0.8 |
1.5 |
1.5 |
13.6 |
15.9 |
302 |
397 |
0.7 |
1.5 |
1.5 |
13.0 |
15.3 |
268 |
360 |
| 7×4 |
0.8 |
1.5 |
1.5 |
15.1 |
17.4 |
415 |
520 |
0.7 |
1.5 |
1.5 |
14.5 |
16.8 |
376 |
477 |
| 7×6 |
0.8 |
1.5 |
1.7 |
16.6 |
19.3 |
557 |
689 |
0.7 |
1.5 |
1.7 |
16.0 |
18.7 |
513 |
640 |
| 7×10 |
1.0 |
1.7 |
1.7 |
21.9 |
24.2 |
925 |
1072 |
0.7 |
1.7 |
1.7 |
20.1 |
22.4 |
819 |
955 |
| 8×0.75 |
0.6 |
1.2 |
1.5 |
9.8 |
12.7 |
185 |
274 |
0.6 |
1.2 |
1.5 |
9.8 |
12.7 |
173 |
262 |
| 8×1 |
0.6 |
1.2 |
1.5 |
10.4 |
13.3 |
160 |
253 |
0.6 |
1.2 |
1.5 |
10.4 |
13.3 |
148 |
241 |
| 8×1.5 |
0.7 |
1.5 |
1.5 |
12.4 |
14.7 |
236 |
323 |
0.7 |
1.5 |
1.5 |
12.4 |
14.7 |
218 |
305 |
| 8×2.5 |
0.8 |
1.5 |
1.5 |
14.3 |
16.6 |
337 |
437 |
0.7 |
1.5 |
1.5 |
13.7 |
16.0 |
299 |
395 |
| 8×4 |
0.8 |
1.5 |
1.7 |
15.8 |
18.5 |
466 |
592 |
0.7 |
1.5 |
1.7 |
15.2 |
17.9 |
422 |
543 |
| 8×6 |
0.8 |
1.7 |
1.7 |
17.9 |
20.2 |
643 |
765 |
0.7 |
1.7 |
1.7 |
17.2 |
19.5 |
592 |
710 |
| 8×10 |
1.0 |
1.7 |
1.7 |
23.1 |
25.4 |
1043 |
1198 |
0.7 |
1.7 |
1.7 |
21.1 |
23.4 |
924 |
1067 |
| 10×0.75 |
0.6 |
1.2 |
1.5 |
11.6 |
14.5 |
256 |
358 |
0.6 |
1.2 |
1.5 |
11.6 |
14.5 |
241 |
343 |
| 10×1 |
0.6 |
1.5 |
1.5 |
12.8 |
15.1 |
215 |
306 |
0.6 |
1.5 |
1.5 |
12.8 |
15.1 |
199 |
289 |
| 10×1.5 |
0.7 |
1.5 |
1.5 |
14.6 |
16.9 |
291 |
393 |
0.7 |
1.5 |
1.5 |
14.6 |
16.9 |
269 |
370 |
| 10×2.5 |
0.8 |
1.5 |
1.7 |
17.0 |
19.7 |
418 |
553 |
0.7 |
1.5 |
1.7 |
16.2 |
18.9 |
371 |
499 |
| 10×4 |
0.8 |
1.7 |
1.7 |
19.3 |
21.6 |
597 |
728 |
0.7 |
1.7 |
1.7 |
18.5 |
20.8 |
541 |
667 |
| 10×6 |
0.8 |
1.7 |
1.7 |
21.3 |
23.6 |
800 |
944 |
0.7 |
1.7 |
1.7 |
20.5 |
22.8 |
736 |
875 |
| 10×10 |
1.0 |
1.7 |
2 |
27.9 |
30.8 |
1300 |
1527 |
0.7 |
1.7 |
2 |
25.5 |
28.4 |
1150 |
1359 |
| 12×0.75 |
0.6 |
1.5 |
1.5 |
12.5 |
14.8 |
208 |
296 |
0.6 |
1.5 |
1.5 |
12.5 |
14.8 |
190 |
279 |
| 12×1 |
0.6 |
1.5 |
1.5 |
13.2 |
15.5 |
245 |
337 |
0.6 |
1.5 |
1.5 |
13.2 |
15.5 |
226 |
318 |
| 12×1.5 |
0.7 |
1.5 |
1.5 |
15.1 |
17.4 |
334 |
438 |
0.7 |
1.5 |
1.5 |
15.1 |
17.4 |
307 |
411 |
| 12×2.5 |
0.8 |
1.5 |
1.7 |
17.6 |
20.3 |
484 |
622 |
0.7 |
1.5 |
1.7 |
16.7 |
19.4 |
427 |
560 |
| 12×4 |
0.8 |
1.7 |
1.7 |
19.9 |
22.2 |
692 |
827 |
0.7 |
1.7 |
1.7 |
19.1 |
21.4 |
626 |
756 |
| 12×6 |
0.8 |
1.7 |
1.7 |
22.0 |
24.3 |
934 |
1082 |
0.7 |
1.7 |
1.7 |
21.2 |
23.5 |
858 |
1002 |
| 14×0.75 |
0.6 |
1.5 |
1.5 |
13.1 |
15.4 |
234 |
326 |
0.6 |
1.5 |
1.5 |
13.1 |
15.4 |
213 |
305 |
| 14×1 |
0.6 |
1.5 |
1.5 |
13.8 |
16.1 |
276 |
373 |
0.6 |
1.5 |
1.5 |
13.8 |
16.1 |
254 |
350 |
| 14×1.5 |
0.7 |
1.5 |
1.7 |
15.8 |
18.5 |
378 |
504 |
0.7 |
1.5 |
1.7 |
15.8 |
18.5 |
347 |
473 |
| 14×2.5 |
0.8 |
1.5 |
1.7 |
18.4 |
21.1 |
551 |
697 |
0.7 |
1.5 |
1.7 |
17.6 |
20.3 |
486 |
625 |
| 14×4 |
0.8 |
1.7 |
1.7 |
20.9 |
23.2 |
791 |
933 |
0.7 |
1.7 |
1.7 |
20.0 |
22.3 |
715 |
851 |
| 14×6 |
0.8 |
1.7 |
1.7 |
23.2 |
25.5 |
1071 |
1227 |
0.7 |
1.7 |
1.7 |
22.3 |
24.6 |
984 |
1134 |
| 16×0.75 |
0.6 |
1.5 |
1.5 |
13.7 |
16.0 |
260 |
355 |
0.6 |
1.5 |
1.5 |
13.7 |
16.0 |
236 |
332 |
| 16×1 |
0.6 |
1.5 |
1.5 |
14.5 |
16.8 |
308 |
408 |
0.6 |
1.5 |
1.5 |
14.5 |
16.8 |
282 |
383 |
| 16×1.5 |
0.7 |
1.5 |
1.7 |
16.6 |
19.3 |
423 |
555 |
0.7 |
1.5 |
1.7 |
16.6 |
19.3 |
387 |
519 |
| 16×2.5 |
0.8 |
1.7 |
1.7 |
19.8 |
22.1 |
637 |
772 |
0.7 |
1.7 |
1.7 |
18.8 |
21.1 |
562 |
691 |
| 19×0.75 |
0.6 |
1.5 |
1.5 |
14.4 |
16.7 |
296 |
397 |
0.6 |
1.5 |
1.5 |
14.4 |
16.7 |
269 |
369 |
| 19×1 |
0.6 |
1.5 |
1.7 |
15.2 |
17.9 |
353 |
474 |
0.6 |
1.5 |
1.7 |
15.2 |
17.9 |
322 |
443 |
| 19×1.5 |
0.7 |
1.5 |
1.7 |
17.4 |
20.1 |
489 |
626 |
0.7 |
1.5 |
1.7 |
17.4 |
20.1 |
446 |
583 |
| 19×2.5 |
0.8 |
1.7 |
1.7 |
20.8 |
23.1 |
738 |
878 |
0.7 |
1.7 |
1.7 |
19.8 |
22.1 |
650 |
784 |
| 24×0.75 |
0.6 |
1.5 |
1.7 |
16.5 |
19.2 |
366 |
497 |
0.6 |
1.5 |
1.7 |
16.5 |
19.2 |
331 |
462 |
| 24×1 |
0.6 |
1.5 |
1.7 |
17.5 |
20.2 |
437 |
575 |
0.6 |
1.5 |
1.7 |
17.5 |
20.2 |
398 |
536 |
| 24×1.5 |
0.7 |
1.7 |
1.7 |
20.6 |
22.9 |
626 |
765 |
0.7 |
1.7 |
1.7 |
20.6 |
22.9 |
572 |
711 |
| 24×2.5 |
0.8 |
1.7 |
1.7 |
24.2 |
26.5 |
919 |
1081 |
0.7 |
1.7 |
1.7 |
23.0 |
25.3 |
808 |
963 |
| 27×0.75 |
0.6 |
1.5 |
1.7 |
16.9 |
19.6 |
401 |
534 |
0.6 |
1.5 |
1.7 |
16.9 |
19.6 |
361 |
495 |
| 27×1 |
0.6 |
1.5 |
1.7 |
17.9 |
20.6 |
480 |
621 |
0.6 |
1.5 |
1.7 |
17.9 |
20.6 |
436 |
577 |
| 27×1.5 |
0.7 |
1.7 |
1.7 |
21.0 |
23.3 |
688 |
831 |
0.7 |
1.7 |
1.7 |
21.0 |
23.3 |
628 |
770 |
| 27×2.5 |
0.8 |
1.7 |
1.7 |
24.7 |
27.0 |
1015 |
1181 |
0.7 |
1.7 |
1.7 |
23.5 |
25.8 |
892 |
1049 |
| 30×0.75 |
0.6 |
1.5 |
1.7 |
17.4 |
20.1 |
437 |
575 |
0.6 |
1.5 |
1.7 |
17.4 |
20.1 |
393 |
531 |
| 30×1 |
0.6 |
1.7 |
1.7 |
18.9 |
21.2 |
541 |
670 |
0.6 |
1.7 |
1.7 |
18.9 |
21.2 |
493 |
621 |
| 30×1.5 |
0.7 |
1.7 |
1.7 |
21.7 |
24.0 |
753 |
900 |
0.7 |
1.7 |
1.7 |
21.7 |
24.0 |
686 |
832 |
| 30×2.5 |
0.8 |
1.7 |
1.7 |
25.6 |
27.9 |
1114 |
1286 |
0.7 |
1.7 |
1.7 |
24.3 |
26.6 |
978 |
1141 |
| 37×0.75 |
0.6 |
1.7 |
1.7 |
19.1 |
21.4 |
539 |
668 |
0.6 |
1.7 |
1.7 |
19.1 |
21.4 |
484 |
618 |
| 37×1 |
0.6 |
1.7 |
1.7 |
20.2 |
22.5 |
646 |
783 |
0.6 |
1.7 |
1.7 |
20.2 |
22.5 |
587 |
727 |
| 37×1.5 |
0.7 |
1.7 |
1.7 |
23.4 |
25.7 |
905 |
1062 |
0.7 |
1.7 |
1.7 |
23.4 |
25.7 |
821 |
983 |
| 37×2.5 |
0.8 |
1.7 |
2 |
27.6 |
30.5 |
1345 |
1570 |
0.7 |
1.7 |
2 |
26.2 |
29.1 |
1178 |
1399 |
|
|
|
