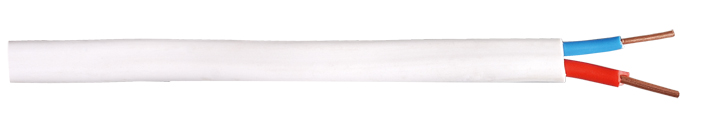

BVVB   铜芯聚氯乙烯绝缘聚氯乙烯护套扁平电缆
Application:
The product is suitable for power insetallation,fixed wiring or fiexible connection for Electrical appliances with rated woltage up to and incling of 300/500V installation.

Model

Section of conductor
(mm²)

Cores/Wire diameter

Nominal Insulation thickness
(mm)

Sheath thickness
(mm)

 Overall diameter
(mm)

Max.insulation resistance(20℃)
(MΩ•km)
上限 下限
227IEC53
(BVVB)
300/500V		 2x0.75 1/0.97 0.6 0.8 3.8x5.9 4.6x7.1 24.5
2x1 1/1.13 0.6 0.8 3.9x6.1 4.8x7.4 18.1
2x1.5 1/1.38 0.7 0.8 4.4x7.0 5.3x8.5 12.1
2x2.5 1/1.78 0.8 1 5.1x8.4 6.2x10.1 7.41
3x0.75 1/0.97 0.6 0.9 3.8x7.9 4.6x9.6 24.5
3x1 1/1.13 0.6 0.9 3.9x8.4 4.8x10.1 18.0
3x1.5 1/1.38 0.7 0.9 4.4x9.6 5.3x11.7 12.1
3x2 1/1.78 0.8 1 5.1x11.6 6.2x14.0 7.41
2x4 1/2.25 0.8 1 5.6x9.2 6.7x11.1 4.61
7/0.85 0.8 1 5.7x9.5 6.9x11.5 4.61
2x6 1/2.76 0.8 1.1 6.2x10.4 7.5x12.5 3.08
7/1.04 0.8 1.1 6.4x10.8 7.8x13.0 3.08
3x4 1/2.25 0.8 1.1 5.8x13.1 7.0x15.8 4.61
7/0.85 0.8 1.1 5.9x13.5 7.1x16.3 4.61
3x6 1/2.76 0.8 1.1 6.2x14.5 7.5x17.5 3.08
7/1.04 0.8 1.1 6.4x15.1 7.8x18.2 3.08
2x10 7/1.35 1 1.2 7.9x13.4 9.5x16.2 1.83
3x10 7/1.35 1 1.2 7.9x19.0 9.5x23.0 1.83
