BVR 铜芯聚氯乙烯绝缘软电缆
Application:
Used as wire for household appliance mechanic equiment installation and dynamic lighting、etc.
Model
Section of conductor
(mm²)
Cores/Wire diameter
Nominal Insulation thickness
(mm)
Upper limtit of average outer diameter
(mm)
Max.insulation resistance(20℃)
(MΩ•km)

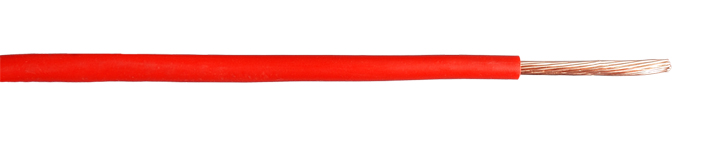

(BVR)Copper-core PVC insulated electric wire
2.5
19/0.41
0.8
4.1
7.41
4
19/0.52
0.8
4.8
4.61
6
19/0.64
0.8
5.3
3.08
10
7x7/0.52
1
6.8
1.83
16
7x7/0.64
1
8.1
1.15
25
7x14/0.58
1.2
10.2
0.727
35
7x19/0.58
1.2
11.7
0.524
50
7x19/0.68
1.4
13.9
0.387
70
7x27/0.68
1.4
16
0.268
