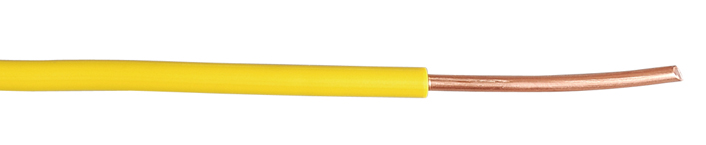

BV 铜芯聚氯乙烯绝缘电线
Application:
Used as wires for indoor appliance、mechanic equipment and dynamic lighting、etc.
Model
Section of conductor
(mm²)
Cores/Wire diameter
Nominal Insulation thickness
(mm)
Upper limtit of average outer diameter
(mm)
Max.insulation resistance(20℃)
(MΩ•km)
227IEC01 (BV)
General-purpose single-core hard copper core
1.5
1/1.38
0.7
3.3
12.1
1.5
7/0.52
0.7
3.4
12.1
2.5
1/1.78
0.8
3.9
7.41
2.5
7/0.68
0.8
4.2
7.41
4
1/2.25
0.8
4.4
4.61
4
7/0.85
0.8
4.8
4.61
6
1/2.76
0.8
4.9
3.08
6
7/1.04
0.8
5.4
3.08
10
1/3.57
1
6.4
1.83
10
1/1.35
1
6.8
1.83
16
7/1.70
1
8
1.15
25
7/1.70
1.2
9.8
0.727
35
7/2.52
1.2
11
0.524
50
19/1.78
1.4
13
0.387
70
19/2.12
1.4
15
0.268
95
19/2.52
1.6
17
0.193
120
37/2.03
1.6
19
0.153
150
37/2.25
1.8
21
0.124
185
37/2.52
2
23.5
0.091
