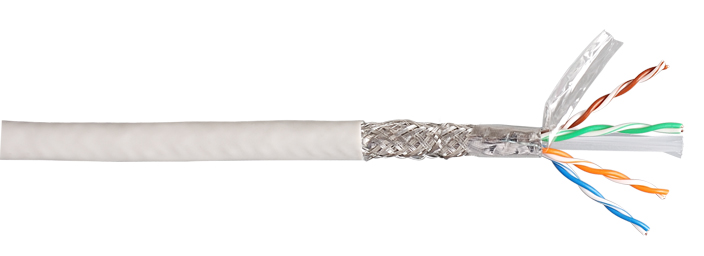

SFTP CAT6   六类双层屏蔽网线

Product standard
SFTP Class 6 four-pair cable meets China’s industry standard YD/T9 (1019-2000), USA ANSI/TIA/EIA-568B.2 standard, ISO/IEC11801 standard and UL Subject444 standard.

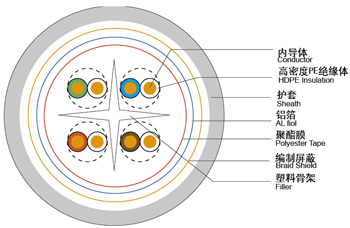

Product description
Conductor: Solid annealing soft copper conductor, diameter: 0.57mm
Insulation: solid polyolefin
Cable core: four-core twist
Shielding material: aluminum belt: aluminum-plastic composite bag, knitting: tin plating soft copperShielding cover:100/40
Sheath: flame-retardant PVC or low-smoke halogen-free Outside diameter: 6.2mm

apply
Integrated ISDN network
10BASE-TEthernet(IEEE802.3)
100BASE-TFast-speed Ethernet(IEEE802.3)
155MbpsATM network
100Vg-AnyLAN(IEEE802.12)
TP-PMD(ANSI X3T9.5)
16Mbps Token Ring Network (IEEE802.5)
1000BASE-T Kilomega Ethernet( IEEE802.3ab)

Frequency Attenuation Next PS Next ELFEXT PS ELFEXT RL
MHz db/100m db db db db db
1 2.4 65.3 52.3 53.8 60.8 20
10 7.8 50.3 47.3 43.8 40.8 25
16 9.9 47.3 44.4 39.7 36.7 25
20 11.1 45.8 42.8 37.7 34.7 25
25 12.5 44.4 41.3 35.8 32.8 24.2
31.25 14.1 42.9 39.9 33.9 30.9 23.3
62.5 20.4 38.4 35.4 27.8 24.8 20.7
100 26.4 35.3 32.3 23.8 20.8 19.0
155 31.3 32.7 29.7 18.3 17.3 17.8
200 36.7 30.8 27.8 15.8 14.8 17.0
250 39.5 29.3 26.3 13.8 12.8 16.3
