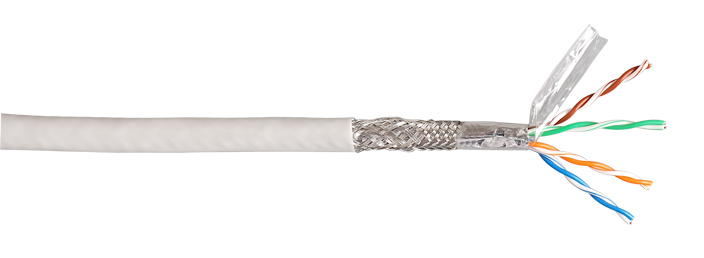

SFTP CAT5E   超五类双层屏蔽网线

Product Standard
SFTP Class 6 four-pair cable meets China’s industry standard YD/T9 (1019-2000), USA ANSI/TIA/EIA-568B.2 standard, ISO/IEC11801 standard and UL Subject444 standard.

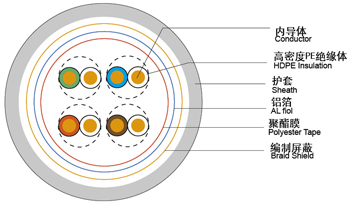

Product description
Conductor: Solid annealing soft copper conductor, diameter: 0.52mm
Insulation: solid polyolefin
Cable core: four-core twist
Shielding material: aluminum belt: aluminum-plastic composite bag, knitting: tin plating soft copper
Shielding cover:100/40
Sheath: flame-retardant PVC or low-smoke halogen-free Outside diameter: 6.2mm

apply
Integrated ISDN network
10BASE-TEthernet(IEEE802.3)
100BASE-TFast-speed Ethernet(IEEE802.3)
155MbpsATM network
100Vg-AnyLAN(IEEE802.12)
TP-PMD(ANSI X3T9.5)
16Mbps Token Ring Network (IEEE802.5)
1000BASE-T Kilomega Ethernet( IEEE802.3ab)

Frequency Attenuation Next PS Next ELFEXT PS ELFEXT RL
MHz db/100m db db db db db
1 2.0 82.5 80.4 75.7 72.6 21
10 5.8 66.9 64.8 54.9 51.8 27
16 7.4 63.7 61.7 50.7 47.5 27
20 8.3 62.2 60.2 48.6 45.5 27
25 9.3 60.7 58.6 46.6 43.5 25.9
21.25 10.4 59.2 57.1 44.5 41.5 25.7
62.5 15.1 54.5 52.4 38.3 35.2 23.7
100 19.3 51.3 49.2 34.1 31.0 23.5
