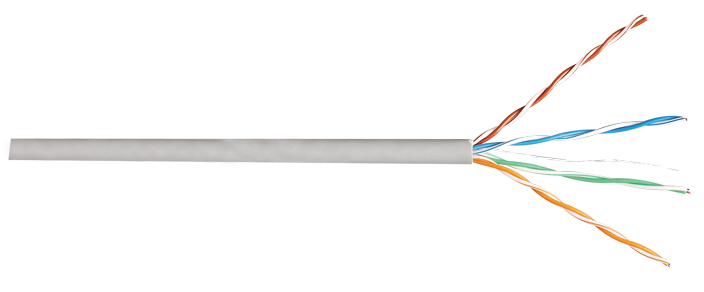

UTP CAT5E  超五类网线





apply
Integrated ISDN network
10BASE-TEthernet(IEEE802.3)
100BASE-TFast-speed Ethernet(IEEE802.3)
155MbpsATM network
100Vg-AnyLAN(IEEE802.12)
TP-PMD(ANSI X3T9.5)
16Mbps Token Ring Network (IEEE802.5)
1000BASE-T Kilomega Ethernet( IEEE802.3ab)

Product description
ANSI/TIA 568-A
EN50713
ISO/IEC 11801
-100.0Mhz impedance（ohms）：100+/-15
Delay（ns/100m）≤45
Earth capacitance imbalance（PF/100M）: 最大330
DC resistance of inner conductor 20%（ohms/km）：≤73.2
Resistance imbalance（%）： 5

Model
 Attenuation RL Next PS Next
MHz db/100m db db db/100m
1MHz 2.0 20 65.3 63.5
4MHz 4.1 23 56.3 54.2
8MHz 5.8 24.5 52.4 50.5
10MHz 6.6 25 51.3 49.2
16MHz 8.2 25 49.3 47.4
20MHz 9.3 25 48.8 46.9
25MHz 10.4 24 45.3 43.4
31.25MHz 11.7 23 43.0 41.8
62.5MHz 17.0 21 39.2 37.2
100MHz 22.0 20 36.3 34.4
